Sennheiser K 3 x 0.2 Cable Material

Product Overview

Our cable material has been developed by Neumann and is exclusively produced for Neumann by highly qualified manufacturers. All microphone cables have a counter wound double helix copper shielding, assuring a particularly high degree of coverage (95%). HF rejection is exceptionally good, flexibility of the cable excellent.

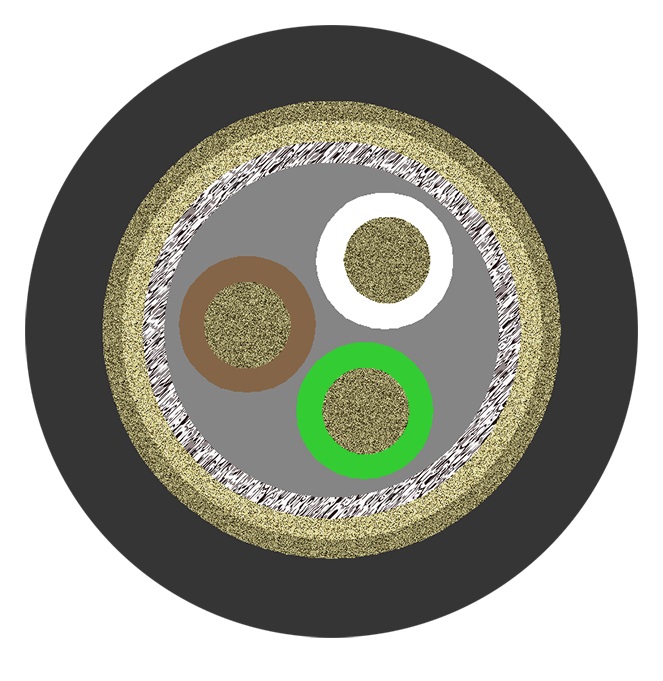

Construction

3 conductors 0.2 sqmm copper wire 102 x 0.05 mm

Insulation special thermoplastic

Shielding: 2 layers of counterwound bare copper wire

Jacket special pvc matte charcoal-gray and round

Printing "Georg Neumann GmbH Berlin - Made in Germany"

Overall diameter: 5.0 mm

Technical Data

Conductor resistance: < 96 Ohms/km

Insulation resistance: > 20 MOhms x km

Capacitance core/core: 135 nF/km (1 kHz)

Test voltage core/core: 1.2 kV

Test voltage core/shield: 0.6 kV

Temperature range: - 20° C to + 70° C
