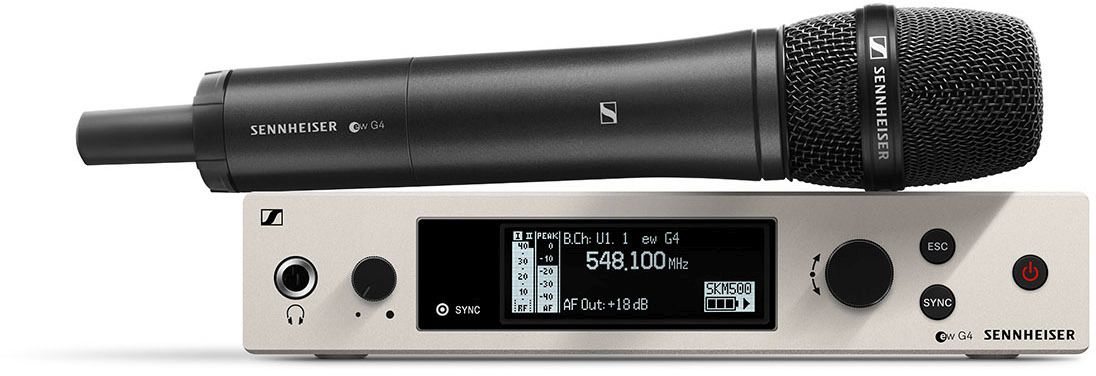

For professional live performances this set consists of 1 SKM 500 G4 handheld, 1 MMK 965-1 cardioid/supercardioid condensor capsule, 1 em 300-500 G4 rackmount receiver, 1 GA3 rack kit, and 1 mic clipRead More
Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
EM 300-500 G4 true diversity receiver
SKM 500 G4 handheld transmitter
MMD 935-1 microphone head (only 935 variants)
MMD 945-1 microphone head (only 945 variants)
MMK 965-1 microphone head (only 965 variants)
MZQ 1 microphone clamp
2 AA batteries
power supply
GA 3 rackmount set
2 rod antennas
quick guide
safety guide
manufacturer declaration sheet
General Specs | |
| Product Weight (lbs.) | 2.16 |
| MPN | EW 500 G4-965 |
| Manufacture Part Number | EW 500 G4-965 |
| Battery Included | Yes |
EM 300-500 G4 | |
| Frequency range | 790 - 865 MHz |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | = 0.9 % |
| Weight | Approx. 980 g |
| Audio output 6.3 mm jack socket (unbalanced): | +12 dBu |
| Audio output XLR socket (balanced): | +18 dBu |
| Signal-to-noise ratio | = 115 dBA |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Modulation | Wideband FM |
| Power supply | 12 V DC |
| Antenna connector | 2 BNC sockets |
| Current consumption | 350 mA |
| Adjacent channel rejection | Typically = 75 dB |
| Intermodulation attenuation | Typically = 70 dB |
| Receiving frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| RF sensitivity | < 2.5 µV for 52 dBA eff S/N |
| Squelch | 5 to 25 dBµV in steps of 2 dB |
| Equalizer | Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) |
| Temperature Range | -10 °C to +55 °C |
| Receiver Principle | True diversity |
| Blocking | = 75 dB |
SK 500 G4 | |
| Dimensions | Approx. Ø 50 x 265 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | = 0.9 % |
| Weight | (incl. batteries) approx. 450 g |
| Signal-to-noise ratio | = 115 dBA |
| RF output power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA with transmitter switched off: = 25 µA |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| AF frequency response | 80 – 18,000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency stability | = ±15 ppm |
MMK 965-1 | |
| Frequency response | 40 to 20,000 Hz |
| Max. sound pressure level | 144 dB |
| Transducer principle | externally polarized dual diaphragm condenser microphone |
| Weight | 162 g |
| Diameter | of diaphragm: 2.54 cm (1") |
| Pick-up pattern | cardioid/supercardioid, switchable |
| Sensitivity in free field, no load (1kHz) | 7.0 mV/Pa |
| Equivalent noise level | 18 dB |
| Dynamic range | 126 dB(A) |
